Get Mechanical Drawing
ATS-3012-C5-R0-EXPLODED
*Image above is for illustration purpose only..

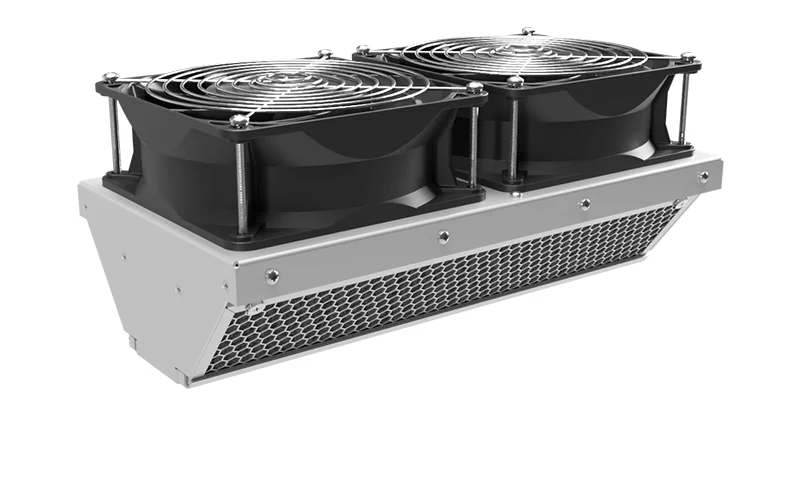

205.0 x 200.0 x 105.0 mm  High Capacity Air Cooling POLARVrTX
Heat Sink
Product Details
  • ATS-3013
  • 205.0 x 200.0 x 105.0 mm  High Capacity Air Cooling POLARVrTX
  • N/A
  • High-efficiency and high density fin design
  • N/A
  • N/A
  • See detail
  • See detail
Specifications
  • Comes with preinstalled PWM enabled fans for dynamic control
  • Provided space for attaching PWM fan controller
  • High-efficiency and high density fin design
  • Low thermal resistance makes POLARVrTX™ ideal for varied applications
  • Removable air filters to keep heat sink fins clean for low maintenance
  • Ideal for cooling high-power applications
  • Greater performance than liquid cooling
  • Customizable for specific applications
POLARVrTX™
Product and How To Videos
POLARVrTX™
Product Details
Part Number Lifecycle Status Length
(mm)		 Width
(mm)		 Height
(mm)		 Air Mover (Fans) Fan Voltage
(DC) 		Noise
(dB) 		Weight
(g) 		Material Filter Material Lead Wire
Pin Out
(AWG Wire)
ATS-3013 ACTIVE 205.0 200.0 105.0 8 12 82.5 2516 Aluminum Duct, Aluminum Heat Sink Aluminum Frame with Polyurethane Foam 10
High-efficiency fin field design enables to cool high output devices in a variety of applications

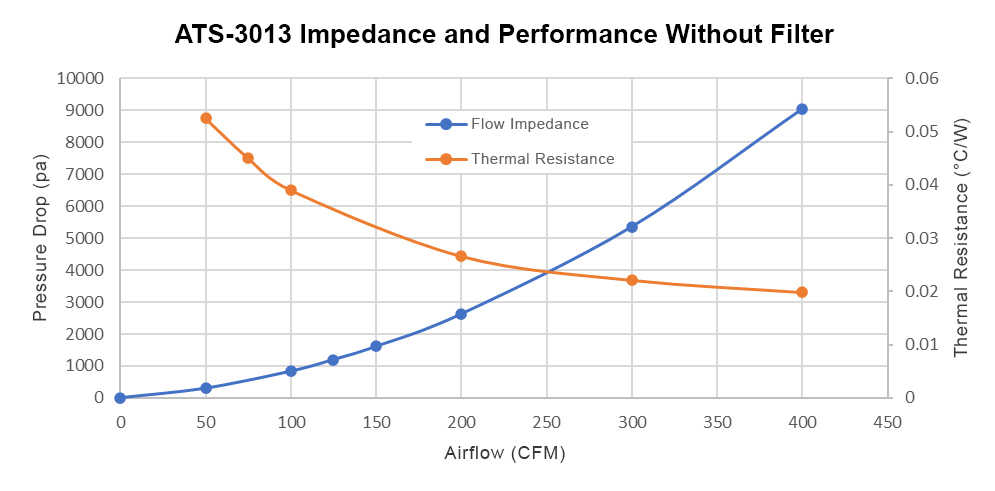

Thermal Performance
Schematic Image. AIR VELOCITY THERMAL RESISTANCE
FT/MIN M/S °C/W Unducted Flow °C/W Ducted Flow

*Image above is for illustration purpose only.
A: Length B: Width C: Height D : Fin Tip to Fin Tip. 		100 0.5 N/A 0.0
200 1.0 N/A N/A
300 1.5 N/A N/A
400 2.0 N/A N/A
500 2.5 N/A N/A
600 3.0 N/A N/A
700 3.5 N/A N/A
800 4.0 N/A N/A
ATS-3013   (Data Sheet)
205.0 x 200.0 x 105.0 mm  High Capacity Air Cooling POLARVrTX		 download data sheet
ATS-3013
Mechanical Drawing - FUSED MODEL (used for Form and Fit use) 		download fused Model for Form and Fit use
superGRIP™
Installation & Removal		 download data sheet
superGRIP™
Clearance Guidelines		 download data sheet
ATS-maxiGRIP
Installation Guidelines		 download data sheet
ATS-maxiGRIP
Clearance Guidelines		 download data sheet
RoHS
Obtain RoHS Certificate		 download data sheet
