Get Mechanical Drawing
ATS-3012-C5-R0-EXPLODED
*Image above is for illustration purpose only..
306.0 x 105.0 x 113.5 mm  High Capacity Air Cooling POLARVrTX
Heat Sink
Product Details
  • ATS-3014
  • 306.0 x 105.0 x 113.5 mm  High Capacity Air Cooling POLARVrTX
  • N/A
  • High-efficiency and high density fin design
  • N/A
  • N/A
  • See detail
  • See detail
The ATS POLARVrTX™ family delivers high-performance active cooling that surpasses liquid cooling systems, making it a cost-effective and low-maintenance thermal solution. Designed for high-power applications, POLARVrTX achieves the thermal resistance of water using air, eliminating the need for complex liquid cooling infrastructure.
Features & Benefits
  • Comes with preinstalled PWM enabled fans for dynamic control
  • Provided space for attaching PWM fan controller
  • High-efficiency and high density fin design
  • Low thermal resistance makes POLARVrTX™ ideal for varied applications
  • Removable air filters to keep heat sink fins clean for low maintenance
  • Ideal for cooling high-power applications
  • Greater performance than liquid cooling
  • Customizable for specific applications

Applications

  • UV-C LED Cooling
  • High-Power Computing (AI, HPC, data centers)
  • Industrial Electronics (power modules, automation systems)
  • Telecom & Networking (5G, high-density servers)
  • Automotive & Aerospace (inverters, power electronics)
POLARVrTX™

Product and How To Videos

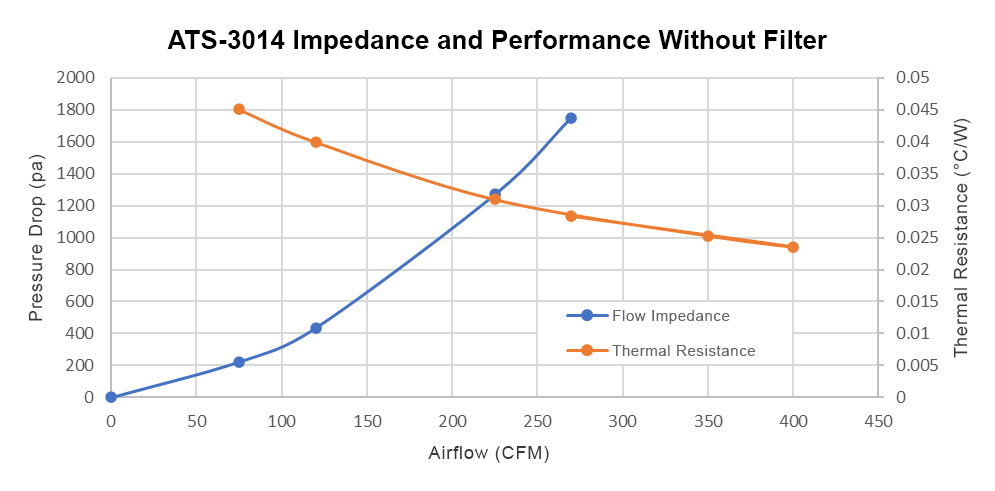

Impedance and Performance Without Filter

Impedance and Performance Without Filter
Product Details
Part Number Lifecycle Status Length
(mm)		 Width
(mm)		 Height
(mm)		 Total Current
(A)		 Fan Voltage
(DC) 		Noise
(dB) 		Weight
(g) 		Material Filter Material Lead Wire
ATS-3014 ACTIVE 306.0 105.0 113.5 10.2 12 82.5 1850 Aluminum Duct, Aluminum Heat Sink Aluminum Frame with Polyurethane Foam 11
High-efficiency fin field design enables to cool high output devices in a variety of applications
Thermal Performance
Schematic Image. FLOW RATE PERFORMANCE
CFM THERMAL RESISTANCE °C/W PRESSURE DROP (Pa)

*Image above is for illustration purpose only.
A: Length B: Width C: Height D : Fin Tip to Fin Tip.
750.0451223
1200.04436
2250.0311270
2700.02841751
3000.02772114
4000.0253566
ATS-3014   (Data Sheet)
306.0 x 105.0 x 113.5 mm  High Capacity Air Cooling POLARVrTX		 download data sheet
ATS-3014
Mechanical Drawing - FUSED MODEL (used for Form and Fit use) 		download fused Model for Form and Fit use
RoHS
Obtain RoHS Certificate		 download data sheet
